Differential TMP 100A
| 所屬分類: | TDR probes |
|---|
詳細介紹

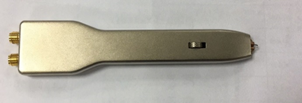

Theda TMP series differential probe is used for PCB inner trace and coupon impedance test, adjustable pitch size covered most test requirements of measurement needs. With extra warranty option, it can be repaired or replaced, please contact Theda sales for more detail.
Specification
| Bandwidth | >15GHz |
| Pitch distance | 0.5mm~4mm (differential) |
| Impedance | 100Ohm(differential) |
| Cable Length | 1M |
| Probe holer connector type | SAM female |
| Size | 140mm x 16mm x 8mm |
Theda TMP TDR 探針套件是針對高速PCB阻抗提供測試解決方案，TMP 100A探棒同時可以用於單端Single Ended及差動Differential的板外Coupon 或板內Inner Trace的阻抗測試，彈性可調整間距的設計避免不同Pitch hole需要換探棒的困擾。適用PCB、FPC板內阻抗測試，探針探頭較小、壽命長，滑輪調節間距操作簡單，可根據待測件之Pad間距調整探針的距離，能準確測量出小間距待測物之阻抗。
